Product level 1
Standard or hook tooth
Profiles + Solid materials
Band width 6 x 0.65 – 67 x 1.6mmDescription
The versatile option in Level-1 for small and medium-sized workpieces

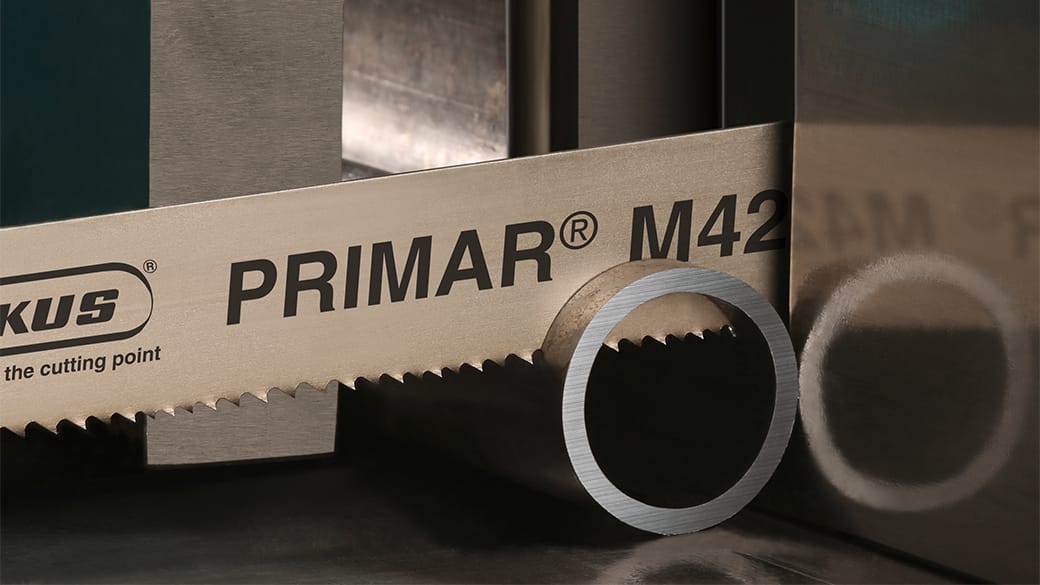

With PRIMAR® M42 WIKUS is also setting standards in the bimetal Level-1 segment. The innovative production process guarantees good product properties and a good blade-life – and all of this with a versatile range of applications.
The cost per cut can be reduced, thanks to the high degree of process reliability. As a result of the super finish, the optimized contours on the tooth cutting edges produce improved cutting surfaces.
Application Range
Applications
- small to medium-sized workpieces
- solids and profiles
- workshops and smaller industrial applications
- all metals up to 1000 N/mm² tensile strength
Features

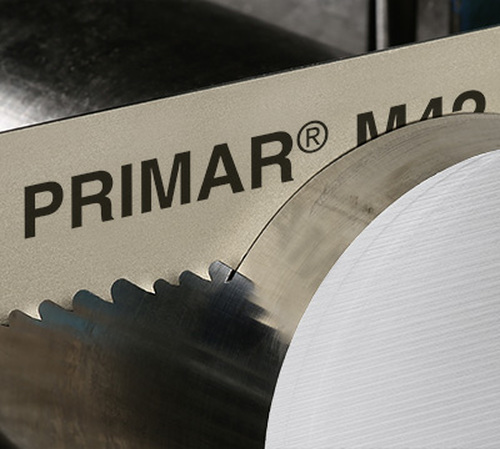

- M42 tooth edge with customized rake angle
- optimized variable tooth pitch and standard tooth setting
less frequent blade changes
thanks to universal field of application
good blade-life
thanks to new manufacturing processes
low operating noise
thanks to variable tooth pitch
good cutting surface
thanks to precise tooth setting
very good price-performance-ratio
in the Level-1 segment

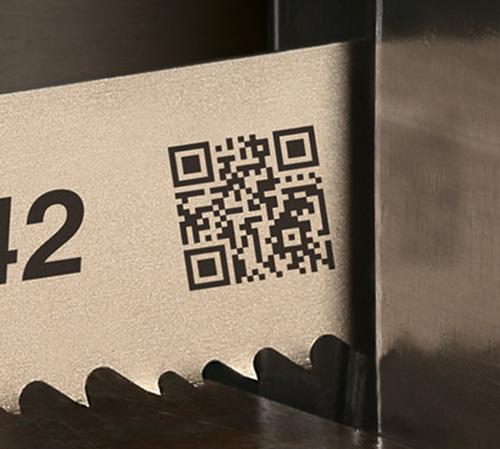

QR code for ParaMaster® APP
When scanning the QR code on the blade with the ParaMaster® App, the blade data are transmitted automatically.
Dimensions
Tooth pitch in ZpZ
| Width x thickness | |
|---|---|
| mm | Inch |
| 6 x 0.65 | 1/4 x 0.025 |
| 6 x 0.90 | 1/4 x 0.035 |
| 10 x 0.90 | 3/8 x 0.035 |
| 13 x 0.50 | 1/2 x 0.020 |
| 13 x 0.65 | 1/2 x 0.025 |
| 20 x 0.90 | 3/4 x 0.035 |
| 27 x 0.90 | 1-1/16 x 0.035 |
| 34 x 1.10 | 1-3/8 x 0.042 |
| 41 x 1.30 | 1-5/8 x 0.042 |
| 54 x 1.30 | 2-1/8 x 0.050 |
| 54 x 1.60 | 2-1/8 x 0.063 |
| 67 x 1.60 | 2-5/8 x 0.063 |
|
Contact length[mm][Inch]
|
|
| variable | constant | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-14 | 8-12 | 6-10 | 5-8 | 4-6 | 3-4 | 2-3 | 1.4-2 | 1-1.4 | 18 | 14 | 6 | 4 | 3 | 2 |
| S | ||||||||||||||
| S | K | |||||||||||||
| S | K | K | ||||||||||||
| S | ||||||||||||||
| S | S | S | S | |||||||||||
| S | S | S | S | K | S | K* | K* | |||||||
| S | S | S | S | K | K | K | S | S | K* | K* | K* | |||
| S | S | S | K | K | K | K* | ||||||||
| K | K | K | K | |||||||||||
| K | K | |||||||||||||
| K | K | K | K | |||||||||||
| K | K | K | ||||||||||||
| < 20< 0.8 | 10-300.4-1.2 | 20-500.8-2 | 30-601.2-2.4 | 50-1002-3.9 | 80-1703.1-6.7 | 150-3005.9-11.8 | 250-5509.8-21.6 | 500-100019.7-39.4 | < 10< 0.4 | < 15< 0.6 | 50-802-3.1 | 80-1203.1-4.7 | 120-2004.7-7.9 | 200-4007.9-15.7 |
S = Standard tooth
K = Hook tooth
K*= Wide set for non-ferrous metals
- Case-hardened steels, spring steels and ball-bearing steels
- Rust-proof and acid-resistant steels (ferretic)
- Nitrided steel, high-speed steel and tool steel
- Construction, deep-drawn and machining steels
- Carbon steels, and quenched and tempered steels
- Cast iron
- Aluminium / aluminium alloys
- Non-ferrous metals
